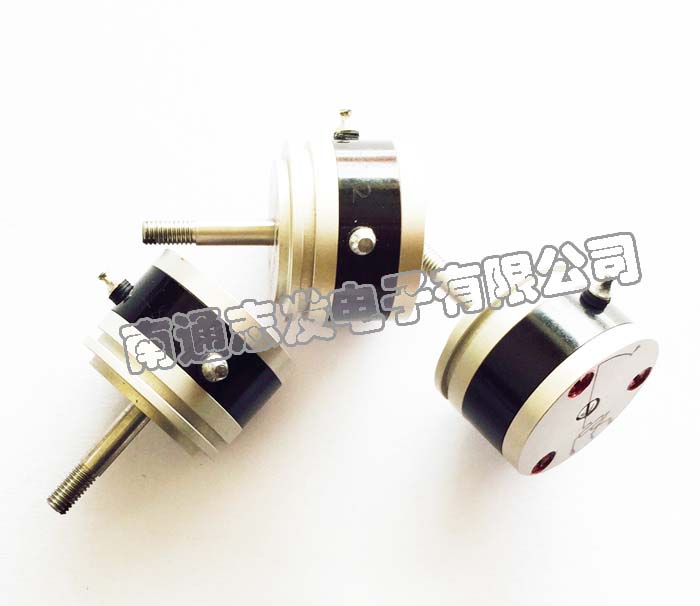

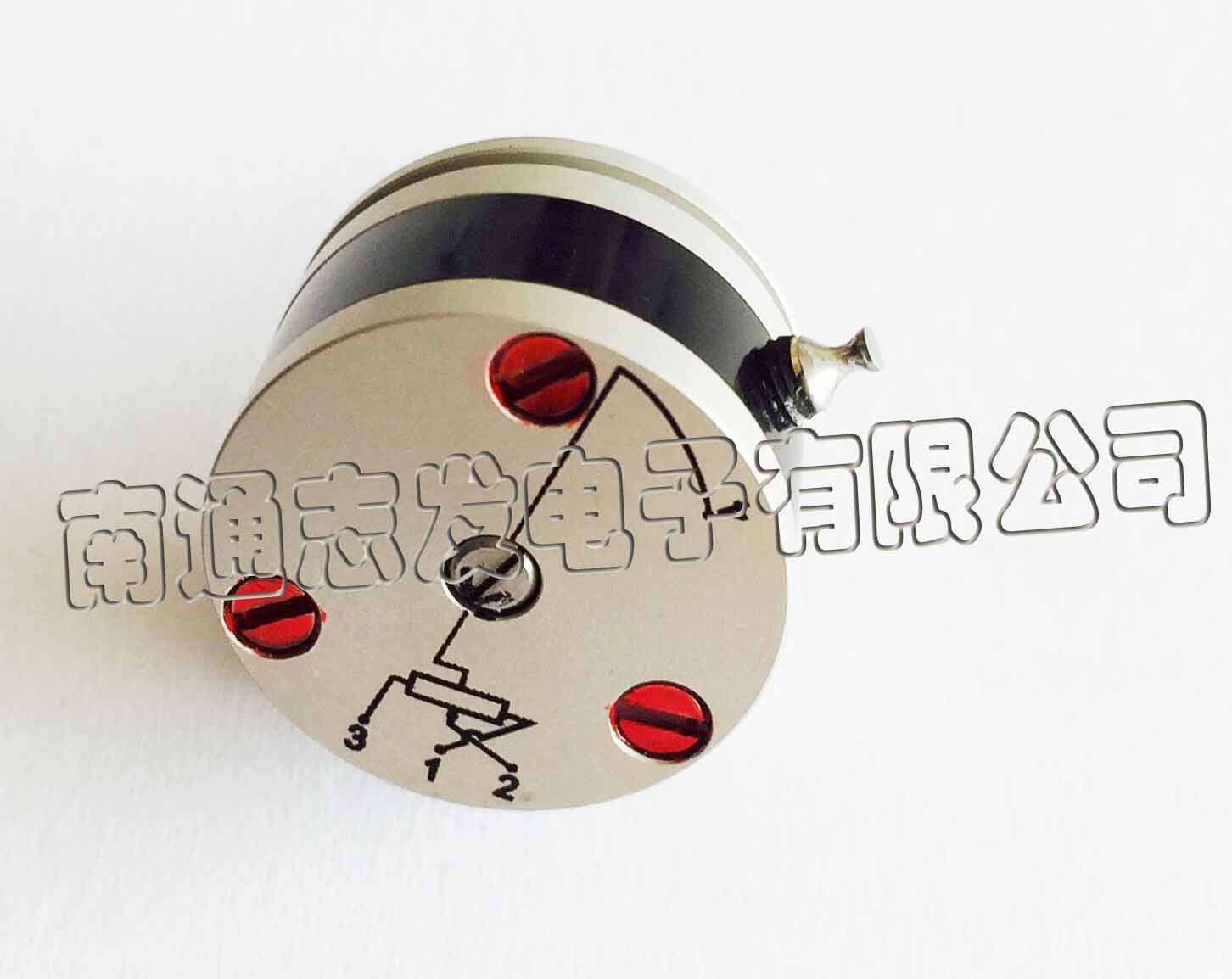

WHJ3 high precision synthetic film potentiometer
Characteristic profile:
Nominal resistance range: 1K ~ 100K.
Resistance tolerance: ±5% ± 10%
Rated power: 0.75W
With center tap, diameter 20mm
Maximum operating voltage: 250V
Mechanical life: 200000 turns
Linear accuracy: ± 0.1% to ± 0.1%
Mechanical angle: 360 degree continuous, effective electrical angle + 160
Axis end shape: ZS - 1
